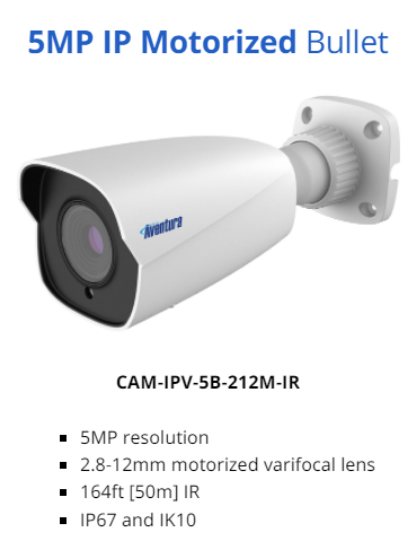

CAM-IPV-5B-212M-IR

5MP resolution 2.8mm-12mm motorized varifocal lens 200ft [60m] IR illuminator H.264 / H.265 encoding Quadruple stream PoE+, 12Vdc or 24Vac power IP66 weather resistant IK10 vandal proof Onvif S/G/Q/T
Manufacturer: Aventura

Features

  • 5MP resolution
  • 2.8mm-12mm motorized varifocal lens
  • 200ft [60m] IR illuminator
  • H.264 / H.265 encoding
  • Quadruple stream
  • PoE+, 12Vdc or 24Vac power
  • IP66 weather resistant
  • IK10 vandal proof
  • Onvif S/G/Q/T


Part Numbers


CAM-IPV-5B-212M-IR5MP bullet camera with 2.8mm – 12mm motorized lens
CAM-BKT-IPV-J1Junction Box
CAM-BKT-IPV-PND1Pendant Mount requires Junction box
CAM-BKT-IPV-WM1Wall Mount requires Junction Box
CAM-BKT-IPV-CNRCorner Mount
CAM-BKT-IPV-PILPole/Pillar Mount

Specifications

Camera
Resolution2592×1944 (5MP)
Effective pixels5038848
Pixel size1.5µm
Image sensorSC5236
Imager type and size1/2.7″ CMOS
Optical zoomn/a
Digital zoom20x on web browser & IPV NVR
Signal systemNTSC/PAL
Aspect ratio4:3
Minimum illuminationcolor: 0.023Lux
B/W: 0.0085lux
IR: 0 lux
Day night typeIR cut filter auto switch
Electronic shutter rangeauto/manual (1/1 – 1/10,000s)
High Dynamic Range (HDR)yes
Electronic Image Stabilization (EIS)n/a
Encoding
Video compressionH.265 / H.264 / MJPEG
Frame rate
(maximum)
60Hz : 5MP(1~20fps)/4MP(1~30fps)/ 1080P(1~30fps)/720P(1~30fps)
50Hz : 5MP(1~20fps)/4MP(1~25fps)/ 1080P1~25fps)/720P(1~25fps)
Bit rate controllow bit rate (LBR), variable bit rate (VBR), constant bit rate (CBR) in H.265/H.264
Video streamingup to 3 individually configured streams in H.265 / H.264 / MJPEG
Network
ProtocolsARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS
Securityuser authentication / HTTPS / IP filter / IEEE 802.1x
Communication interfaceRJ45 10M/100M  Ethernet interface
System compatibilityOnvif S / G compliant
Lens
Lens typemotorized varifocal
IrisP-Iris, auto-Iris
Focal length2,8mm – 12mm
F-numberF1.4
Horizontal field of view102.7°- 32.2°
Vertical field of view57.7°- 18.1°
Focusauto
Remote focus and zoomyes
IR illuminator
IR distance200ft [60m]
Audio
Audio Input/Outputn/a
Streamingn/a
Encodingn/a
Alarm
Inputn/a
Outputn/a
Additional Features
Image settingscolor, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Corridor mode90°, 180°, 270° rotation
Built-in analyticsmotion detection, tampering, audio detection
Event triggersexternal input, analytics, network failure detection, periodical event, manual trigger
Event actionsexternal output activation, video and audio recording to edge storage, file upload, notification
File uploadFTP, network share and email
NotificationsHTTP, FTP, email
StoragemicroSD, microSDHC, micro SDXC card
support for recording to NAS
Environmental
Ingress protectionIP66
Vandal resistance proofIK10
Operating temperature-22°F to 131°F [-30°C to 55°C] -67°F to 131°F [-55°C to 55°C] with heater
Storage temperature-4°F to 158°F [-20°C to 70°C]
Operating humidity90%RH non-condensing
Storage humidity90%RH non-condensing
Electrical
Input voltage12Vdc/24Vac ± 10%, PoE (802.3af, class 0)
Current draw1.14A at 12Vdc
Powermaximum 13.68W
Physical Characteristics
Dimensions4″(Ø) x9.25″(H)
10.5cm(Ø) x 23.4cm(H)
Weight2.75lbs [1.21kg]
ConnectorsEthernet interface: RJ45
12Vdc and 24Vac power terminal blocks
Finishmetal and acrylic
General
Safety/EMC standardCE, FCC, LVD
LanguagesEnglish
