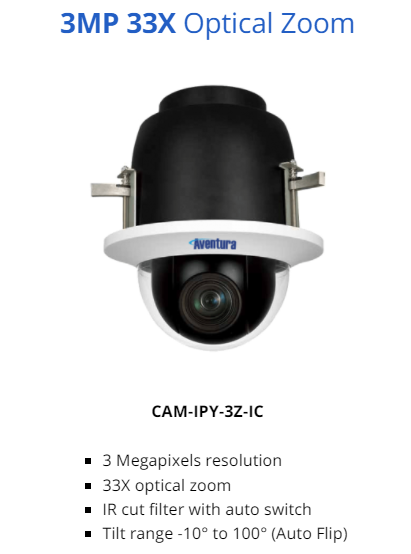

CAM-IPY-3Z-IC

3MP resolution 33X optical zoom H.264 / H.265 encoding Quadruple stream Tilt range -10° to 100° PoE+, 12Vdc or 24Vac power Onvif S/G/Q/T Micro SD/SDHX/SDXC card Audio IN/OUT Alarm IN/OUT
Manufacturer: Aventura

Features

  • 3MP resolution
  • 33X optical zoom
  • H.264 / H.265 encoding
  • Quadruple stream
  • Tilt range -10° to 100°
  • PoE+, 12Vdc or 24Vac power
  • Onvif S/G/Q/T
  • Micro SD/SDHX/SDXC card
  • Audio IN/OUT
  • Alarm IN/OUT

Part Numbers


CAM-IPY-3Z-ICIndoor PTZ, 3MP, 33X optical zoom


Specifications

Signal systemNTSC/PAL

Camera
Resolution2065×1553 (3MP)
Effective pixels3,206,945
Pixel size2.5μm
Image sensorprogressive scan
Imager type and size1/2.8″ CMOS
Optical zoom33x
Digital zoom10x via Web Browser
Minimum illuminationColor: 0.04Lux
B/W: 0.002lux
Day night typeIR cut filter auto switch
Electronic shutter rangeauto/manual (1/1 – 1/10,000s)
High Dynamic Range (HDR)yes
Electronic Image Stabilization (EIS)yes
Encoding
Video compressionH.264 / H.265 / MJPEG
Frame rateH.264: 3MP (2065×1553) @ 30fps
H.265: 3MP (2065×1553) @ 30fps
MJPEG: 1080p (1920×1080) @ 30fps
Bit rate controllow bit rate (LBR), variable bit rate (VBR), constant bit
rate (CBR) in H.265/H.264
Video streamingup to 4 individually configured streams in H.265 /
H.264 / MJPEG

Network
ProtocolsARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP,
UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP,
DDNS
SecurityRJ45 10M/100M Ethernet interface
Communication interfaceOnvif v2.4
System compatibilityOnvif S / G / Q / T compliant
Lens
Lens typevarifocal
IrisP-Iris, auto-Iris
Focal length4.6mm -152mm
F-numberF1.6
Horizontal field of view55.4° to 1.9°
Vertical field of view42.8° to 1.4°
Focusauto

Pan/Tilt/Zoom (PTZ)yes
Pan/Tilt/Zoom (PTZ)yes
Pan/Tilt
Pan range360° continuous
Pan speedmanual: 0.1° to 90°/s
preset: 400°/s
Tilt range-10° to 100°
Tilt speedmanual: 0.1° to 55°/s
preset: 300°/s
Presets256
Pattern8 sequence, 8 cruise, 4 auto pan

Power loss recoverywatch dog timer
External ControlRS485 2400/4800/9600/19200 bps
Audio
Audio Input/Outputline in / line out
Streaming2 way

EncodingG711/G.726/AAC/LPCM
Alarm
Input4 inputs
Output2 outputs

Additional Features
Image settingscolor, brightness, sharpness, contrast, white balance,
exposure control, 2DNR, 3DNR, NR by motion masking,
text overlay
Corridor mode90°, 180°, 270° rotation
Built-in analyticsmotion detection, audio detection
Event triggersexternal input, analytics, network failure detection,
periodical event, manual trigger
Event actionsexternal output activation, video and audio recording
to edge storage
File outputFTP, network share and email
NotificationsHTTP, FTP, email
Text overlaytitle on/off
Privacy zonesyes
Storage128 with user titles
Text overlaymicroSD, microSDHC, micro SDXC card
support for recording to NAS

Environmental
Ingress protectionn/a
Vandal resistance proofn/a
Operating temperature-40°F to 122°F [-40°C to 50°C] with heater
Storage temperature-4°F to 158°F [-20°C to 70°C]
Operating humidity90%RH non-condensing
Storage humidity90%RH non-condensing
Electrical
Input voltage12Vdc/24Vac ± 10%, PoE+ (802.3at, class 4)
Current draw2.1A at 12Vdc
Powermax. 25.4W

Physical Characteristics
Dimensions8.35″(Ø) x 10.39″(H)
21.2cm(Ø) x 26.4cm(H)
Weight5.7lbs [2.9kg]
ConnectorsEthernet interface: RJ45
DC/AC power terminal block
audio IN/OUT terminal block
alarm IN/OUT terminal block
CVBS connector
RS485 terminal block
General
Safety/EMC standardCE, FCC, LVD
LanguagesEnglish
