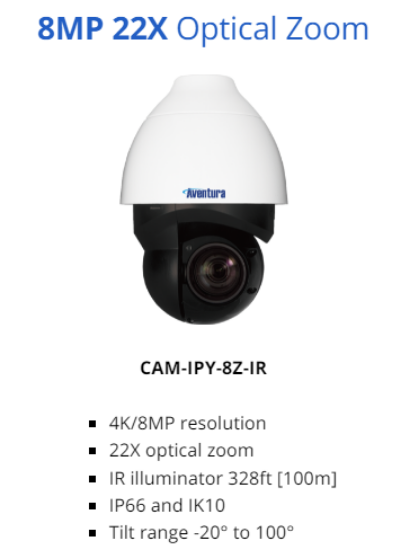

CAM-IPY-8Z-IR

4K/8MP resolution 22X optical zoom IR illuminator 328ft [100m] H.264 / H.265 encoding Quadruple stream Tilt range -20° to 100° UPoE, 12Vdc or 24Vac power IP66 weather resistant IK10 vandal proof Onvif S/G/Q/T Micro SD/SDHX/SDXC card Audio IN/OUT Alarm IN/OUT
Manufacturer: Aventura

Features

  • 4K/8MP resolution
  • 22X optical zoom
  • IR illuminator 328ft [100m]
  • H.264 / H.265 encoding
  • Quadruple stream
  • Tilt range -20° to 100°
  • UPoE, 12Vdc or 24Vac power
  • IP66 weather resistant
  • IK10 vandal proof
  • Onvif S/G/Q/T
  • Micro SD/SDHX/SDXC card
  • Audio IN/OUT
  • Alarm IN/OUT

Part Numbers


CAM-IPY-8Z-IROutdoor PTZ, 8MP, 22X optical zoom, IR 200m, IP66, IK10

Specifications

Camera
Resolution3864×2180 (4K/8MP)
Effective pixels8423520
Pixel size2µm
Image sensorSony progressive scan
Imager type and size1/1.8″ CMOS
Optical zoom22x
Digital zoom10x via Web Browser
Signal systemNTSC/PAL
Minimum illuminationColor: 0.04Lux
B/W: 0.002lux
IR: 0lux
Day night typeIR cut filter auto switch
Electronic shutter rangeauto/manual (1/1 – 1/10,000s)
High Dynamic Range (HDR)yes
Electronic Image Stabilization (EIS)yes
Encoding
Video compressionH.265 / H.264 / MJPEG
Frame rateH.264: 8MP (3864×2180) @ 30fps
H.265: 6MP (3072×2048) @ 30fps
MJPEG: 1080p (1920×1080) @ 30fps
Bit rate controllow bit rate (LBR), variable bit rate (VBR), constant bit rate (CBR) in H.265/H.264
Video streamingup to 4 individually configured streams in H.265 / H.264 / MJPEG
Network
ProtocolsARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS
Securityuser authentication / HTTPS / IP filter / IEEE 802.1x
Communication interfaceRJ45 10M/100M/1000M  Ethernet interface
System compatibilityOnvif S / G / Q / T compliant
Lens
Lens typevarifocal
IrisP-Iris, auto-Iris
Focal length6.4mm -138.5mm
F-numberF1.5
Horizontal field of view62.6° to 3.2°
Vertical field of view36.7° to 1.9°
Focusauto
Remote focus and zoomyes
Pan/Tilt/Zoom (PTZ)yes
IR illuminator
IR distance328ft [100m]
Pan/Tilt
Pan range360° continuous
Pan speedmanual: 0.1° to 90°/s
preset: 400°/s
Tilt range-20° to 100°
Tilt speedmanual: 0.1° to 55°/s
preset: 280°/s
Presets256
Pattern8 sequence, 8 cruise, 4 auto pan
Power loss recoverywatch dog timer
External ControlRS485 2400/4800/9600/19200 bps
Audio
Audio Input/Outputline in / line out
Streaming2 way
EncodingG711/G.726/AAC/LPCM
Alarm
Input4 inputs
Output2 outputs
Additional Features
Image settingscolor, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion masking, text overlay
Corridor mode90°, 180°, 270° rotation
Built-in analyticsmotion detection, audio detection
Event triggersexternal input, analytics, network failure detection, periodical event, manual trigger
Event actionsexternal output activation, video and audio recording to edge storage
File outputFTP, network share and email
NotificationsHTTP, FTP, email
Text overlaytitle on/off
Privacy zonesyes
StoragemicroSD, microSDHC, micro SDXC card
support for recording to NAS
Environmental
Ingress protectionIP66
Vandal resistance proofIK10
Operating temperature-40°F to 122°F [-40°C to 50°C] with heater
Storage temperature-4°F to 158°F [-20°C to 70°C]
Operating humidity90%RH non-condensing
Storage humidity90%RH non-condensing
Electrical
Input voltage12Vdc/24Vac ± 10%, UPoE
Current draw3.67A at 12Vdc
Powermax. 51W
Physical Characteristics
Dimensions8.25″(Ø) x 11.75″(H)
21cm(Ø) x 30cm(H)
Weight8.4lbs [3.8kg]
ConnectorsEthernet interface: RJ45
DC/AC power terminal block
audio IN/OUT terminal block
alarm IN/OUT terminal block
CVBS connector
RS485 terminal block
Finishmetal and acrylic
General
Safety/EMC standardCE, FCC, LVD
LanguagesEnglish
Included accessoriessunshield
