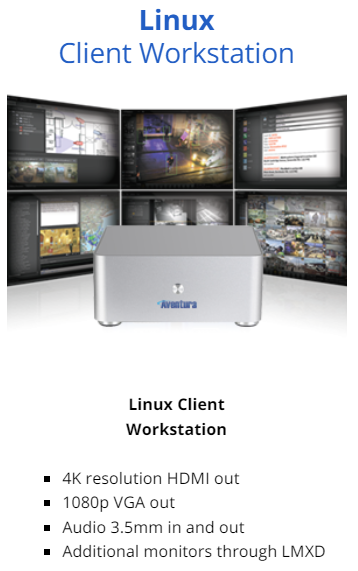

| General Specifications |
| HDMI Out | 1 |
| Max HDMI Resoution | 4K |
| Live View Display Split Local Monitors | 1, 4, 6, 9, 13, 16, 20, 25, 28, 33, 36, 40, 49, 64, 81, 100, 121, 144 |
| Live View Display Split Auxiliary Monitors (LMXD) | 1, 4, 6, 9, 13, 16 |
| Live View Options | Sequence in every display window; display special group on startup; drag any camera into any window and save
it as a display group. |
| Live View Hardware Decode | 4 ch @ 8m; 8 ch @ 4M; 12 ch @ 1080p; 18 ch @ 720p; 36 ch@ D1 real time preview. Max preview at reduced resolution substream. |
| Pre-defined Preview Display Groups | 64; up to 16 groups per monitor |
| External Decode/Display | Manages LMXD dual 4K HDMI video display unit with up to 16 split on each monitor |
| Playback Hardware Decode | 4 ch @ 8; 8 ch @ 4M; 12 ch @ 1080p; 16 ch @ 720p realtime remote playback |
| Video Download/Export | Remote backup, Convert to AVI format when backup, Backup onto USB Disk |
| POS Playback | Max 4 channels with POS information overlay |
| Face Recognition | Real time display; white and black list display |
| E-Map | Shows location of alarm/information/Displays alarm video directly |
| PTZ Control | Control PTZ or speed dome through network by mouse / Motion / Sensor alarm trigger PTZ to call a preset;
Set preset position for each camera independently / Tour all preset positions |
| Alarm Functions | Control and respond to sensor inputs and outputs on DHX NVRs and connected IPC;
Audible warning on alarm for each camera / sensor / Send Email automatically for camera or sensor alarms |
| Permission Management | Two level user permission management:Manager and operator; Playback, capture picture , channel setting , preview video , PTZ control; 20 User
Access Rights lockable to special user |
| Manage Remote DHX Recorders | Vertex™ can manage DHX recorders; user can add / delete / modify all IPC or face lists of DHX and restart DHX from LWS |
| Camera Settings | Display Setting / Video Setting / Motion Detection / Privacy Mask / Alarm Input Setting / PTZ Setting / Linkage Setting |
| LAN | 1Gb/s NIC |
| USB | 2 xUSB 2.0 and 2 x USB 3.0 on rear, 1 x USB 2.0 on side |
| Audio | 3.5mm in and out (rear) |
| Power | 19VDC @ 6.3A max; 2.1mm coaxial connector |
| Included Power Supply | IEC320 C14 110/220VAC 50~60Hz input; 19VDC output 2.1mm plug |
| Weight | 2.2 pounds (1 Kg) |
| Size | 7.87″W x 7.87″D x 2.65″H (200mm W x 200mm D x 67.3mm H) |
| Accessory Cord | NEMA 5-15P to IEC320 C13 |
